Cummins engine has 420hp now. If you prefer Cummins and also want a big hp, please contact us!

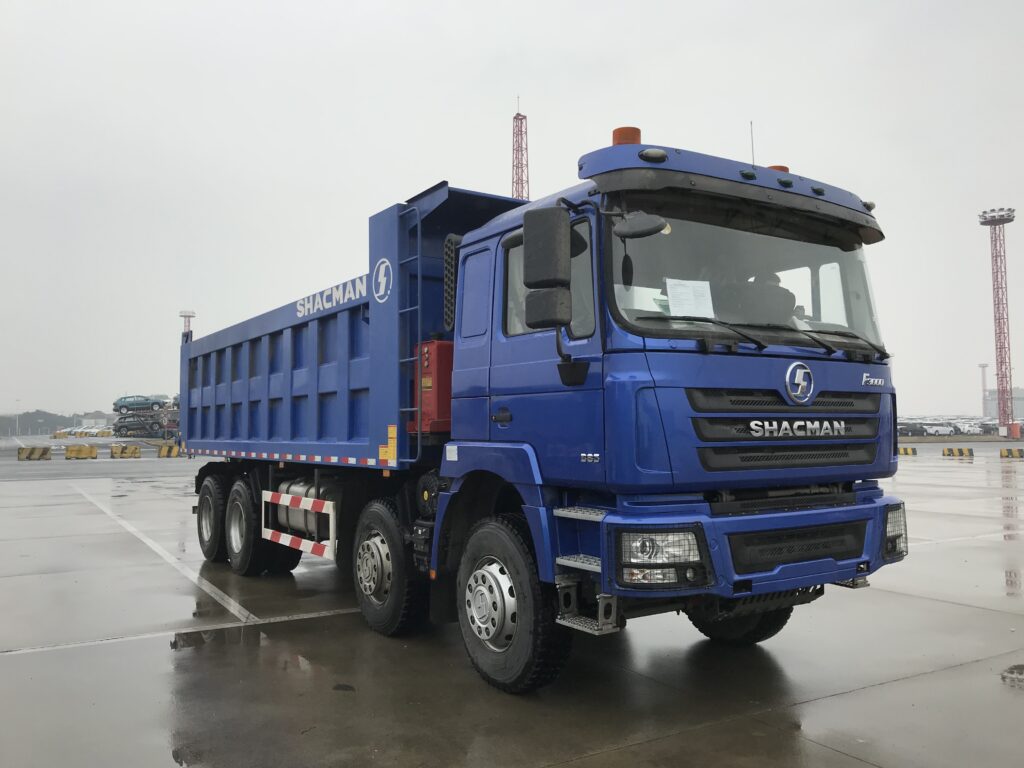

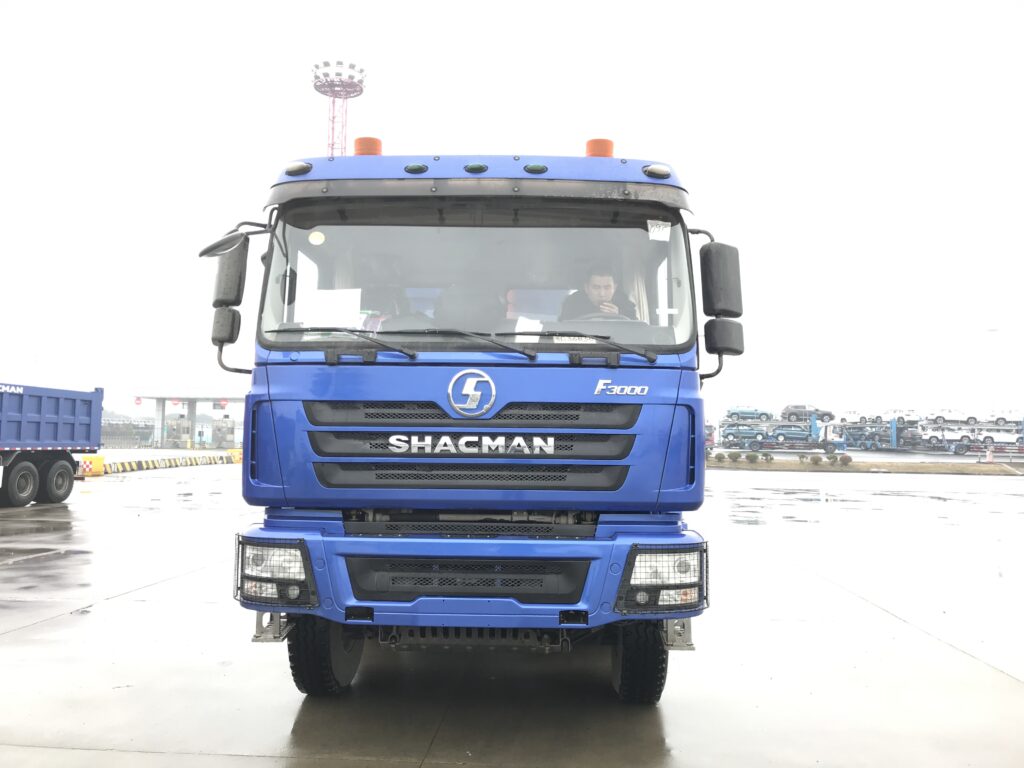

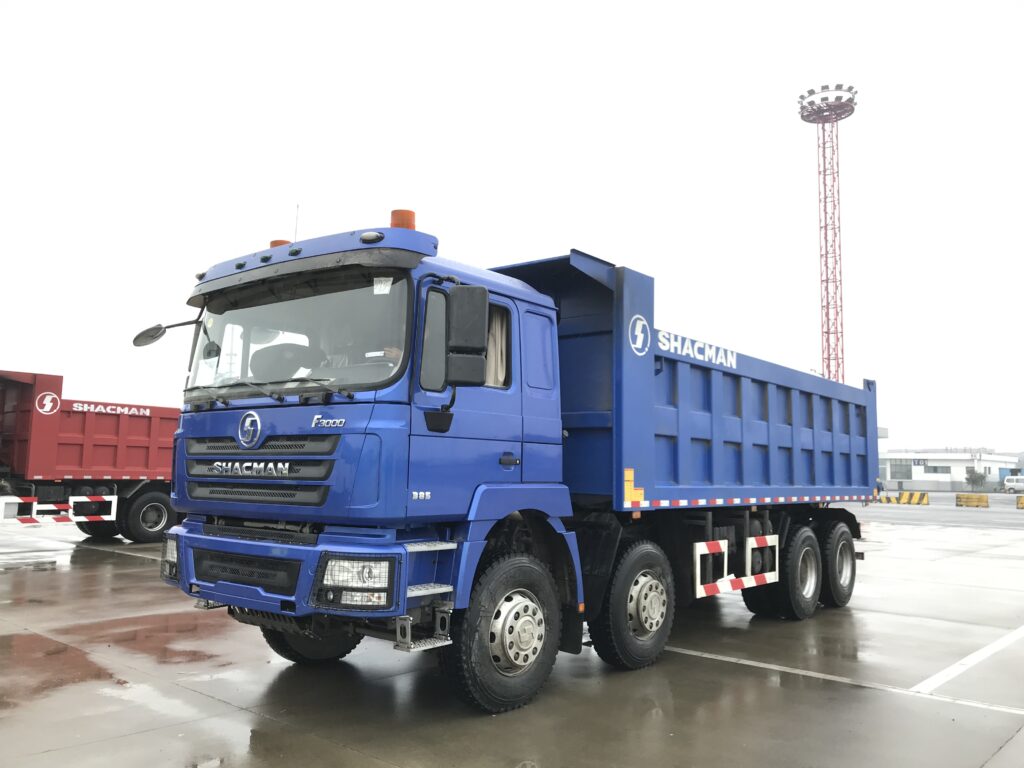

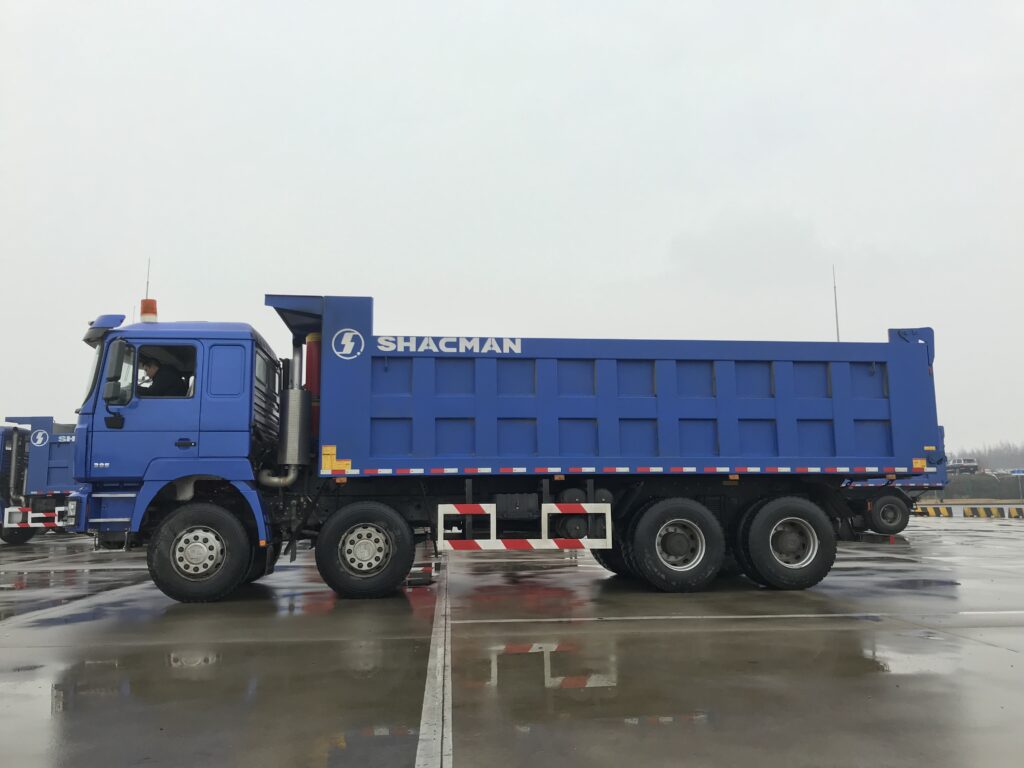

| Model | SX3315DT366C | ||
| Max. running speed (km/h) | 85 | ||
| Drive System | 8×4 | ||
| Dimensions (L*W*H)(mm) |
Overall | 10329x2490x3450 | |
| Dump body | 7400×2300×1500 | ||
| Tipper thickness (mm) | Bottom 8, side 6 | ||
| Hydraulic lifting system | HVYA front lifting | ||
| Approach / departure angle (°) | 28 / 20 | ||
| Kerb weight (kg) | 14600 | ||
| Total mass (kg) | 31000 | ||
| Wheel base (mm) | 1800+3575+1400 | ||
| Overhang (mm) (front/rear) | 1525 / 2054 | ||
| Track width (mm) (front/rear) | 1939/1850 | ||
| Engine | Cummins | ||
| Horsepower | 420 hp | ||
| Ma.torque ( N,m) | 1835 | ||
| Displacement (L) | 10.8L | ||
| Gearbox | 10JSD180+QH50, FAST Gearbox | ||
| Clutch | 430 Diaphragm type | ||
| Steering | ZF technology | ||
| Cab | F3000 mid-lengthened Cabin with A/C & single-sleeper | ||
| Axle | Front axle | 9.5T MAN technology | |
| Rear axle | 16Ton MAN casting axle, final ratio 4.769 | ||
| Tyre (radial tyre) | 12.00R20 | ||
| Oil tank | 400L(ALLOY) | ||
